Description
10 gears GM 8.5" & 8.6" 10 Bolt Chevy - Ring and Pinion Gear SetGM 8. 5" 8. 6" 10 Bolt Ring and Pinion Gear Set Description Package Includes: (1) Ring and Pinion Gear Set Rigid Axle's OE Dry 2 Cut and aftermarket ring and pinion gear sets are made from heat treated 8620 steel. Our OE Dry 2 Cut ring and pinions are made using a two cut, face hobbed manufacturing process. The advantage to running a 2 Cut gear is how quiet they operate. If you want a guaranteed quiet gear, upgrade to our Dry 2 Cut gear set! When

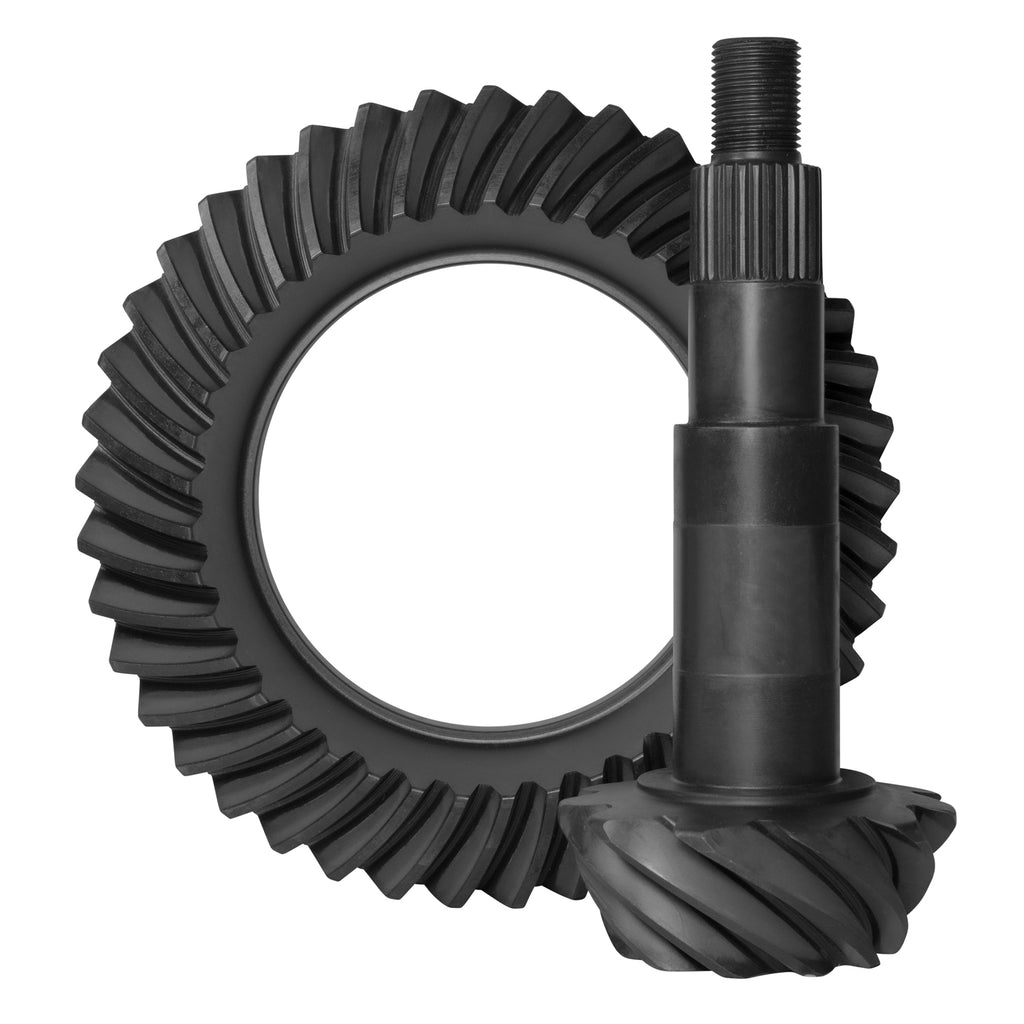

GM 8.5"/8.6" 10 Bolt Ring and Pinion Gear Set
Description
Package Includes:
(1) Ring and Pinion Gear Set
- Rigid Axle's OE Dry 2-Cut and aftermarket ring and pinion gear sets are made from heat treated 8620 steel. Our OE Dry 2-Cut ring and pinions are made using a two-cut, face hobbed manufacturing process. The advantage to running a 2-Cut gear is how quiet they operate. If you want a guaranteed quiet gear, upgrade to our Dry 2-Cut gear set! When these gears are set up properly and rolled with gear marking compound, the pattern will show up slanted. Our aftermarket gear set is made using a five-cut, face milled manufacturing process. Once set up correctly, this will give a square contact pattern on the drive and coast side of each tooth. We are proud of our ring and pinion lines, and you will be too!
- Remember to properly break in your new gear set! Click here for instructions!
- Rigid Axle is proud to offer our customers a full line of differential, transfer case, and transmission parts. We specialize in complete rebuild kits for domestic cars and trucks. Give us a call with your year, make, and model and we'll build you a custom kit for your build!
Applications
- Buick Apollo (1973 - 1975)
- Buick Electra (1971 - 1989)
- Buick Rainier (2004 - 2007)
- Buick Regal (1973 - 1987)
- Buick Riviera (1975 - 1978)
- Buick Skylark (1970 - 1979)
- Cadillac Escalade (1999 - 2013)
- Chevrolet / Chevy Avalanche 1500 (2002 - 2013)
- Chevrolet / Chevy Bel Air (1970 - 1975)
- Chevrolet / Chevy Blazer (1977 - 1994)
- Chevrolet / Chevy C10 1/2 Ton (2WD) (1979 - 1987)
- Chevrolet / Chevy C1500 1/2 Ton (2WD) (1988 - 1999)
- Chevrolet / Chevy C2500 3/4 Ton (2WD) (1989 - 2000)
- Chevrolet / Chevy Camaro (1970 - 1981)
- Chevrolet / Chevy Caprice (1970 - 1996)
- Chevrolet / Chevy Chevelle/ Malibu (1973 - 1973)
- Chevrolet / Chevy Colorado (2004 - 2013)
- Chevrolet / Chevy El Camino (1971 - 1976)
- Chevrolet / Chevy Express Van 1500 1/2 Ton (1996 - 2015)
- Chevrolet / Chevy G10 1/2 Ton (1979 - 1995)
- Chevrolet / Chevy G20 3/4 Ton (1975 - 1995)
- Chevrolet / Chevy Impala (1971 - 1996)
- Chevrolet / Chevy K10/ K1500 1/2 Ton (4WD) (1977 - 1999)
- Chevrolet / Chevy K20/K2500 3/4 Ton (4WD) (1977 - 1991)
- Chevrolet / Chevy K5 Blazer (4WD) (1977 - 1991)
- Chevrolet / Chevy Malibu (1973 - 1983)
- Chevrolet / Chevy Monte Carlo (1973 - 1978)
- Chevrolet / Chevy Nova (1970 - 1979)
- Chevrolet / Chevy S10 Blazer / Pickup (1994 - 2005)
- Chevrolet / Chevy Silverado 1500 1/2 Ton (1999 - 2019)
- Chevrolet / Chevy SSR (2003 - 2006)
- Chevrolet / Chevy Suburban 1/2 Ton (1977 - 2013)
- Chevrolet / Chevy Suburban 3/4 Ton (1977 - 1990)
- Chevrolet / Chevy Tahoe 1500 1/2 Ton (1995 - 2019)
- Chevrolet / Chevy Trailblazer (1999 - 2012)
- GMC C15/ C1500 1/2 Ton (2WD) (1979 - 1999)
- GMC C25/ C2500 3/4 Ton (2WD) (1997 - 2000)
- GMC Canyon (2004 - 2012)
- GMC Envoy (2002 - 2009)
- GMC G15/ G1500 1/2 Ton (1979 - 1995)
- GMC G25/ G2500 3/4 Ton (1978 - 1995)
- GMC K15/ K1500 1/2 Ton (4WD) (1977 - 1999)
- GMC K25/ K2500 3/4 Ton (4WD) (1977 - 1991)
- GMC S15 Jimmy / Pickup (1994 - 2005)
- GMC Savana 1500 1/2 Ton (1996 - 2013)
- GMC Savana 2500 3/4 Ton (1996 - 1998)
- GMC Sierra 1500 1/2 Ton (1999 - 2019)
- GMC Sierra Denali (1999 - 2013)
- GMC Sonoma (1994 - 2004)
- GMC Suburban 1/2 Ton (1977 - 2000)
- GMC Suburban 3/4 Ton (1977 - 1990)
- GMC Typhoon (1992 - 1993)
- GMC Yukon 1500 1/2 Ton (1992 - 2013)
- GMC Yukon XL 1500 1/2 Ton (2000 - 2013)
- Hummer H3 (2005 - 2011)
- Isuzu Ascender (2003 - 2008)
- Oldsmobile Cutlass (1970 - 1987)
- Oldsmobile Omega (1973 - 1979)
- Plymouth Phoenix (1978 - 1979)
- Pontiac Bonneville (1970 - 1986)
- Pontiac Catalina (1970 - 1981)
- Pontiac Firebird (1970 - 1981)
- Pontiac Grand Prix (1971 - 1987)
- Pontiac GTO (1970 - 1977)
- Pontiac LeMans (1971 - 1983)
- Pontiac Trans Am (1970 - 1981)
- Pontiac Ventura (1976 - 1977)
- Saab 9-7x (2005 - 2009)
Specifics
- Cover Bolt Quantity: 10
- Differential Model: GM 8.5" & GM 8.625"
- Pinion Shaft Diameter: 1.626 Inch
- Pinion Spline Count: 30
- Ring Gear Bolt Quantity: 10
- Ring Gear Diameter: 8.5 Inch
- Ring Gear Material: Heat Treated 8620 Steel
- Ring Gear Rotation: Standard
