Description

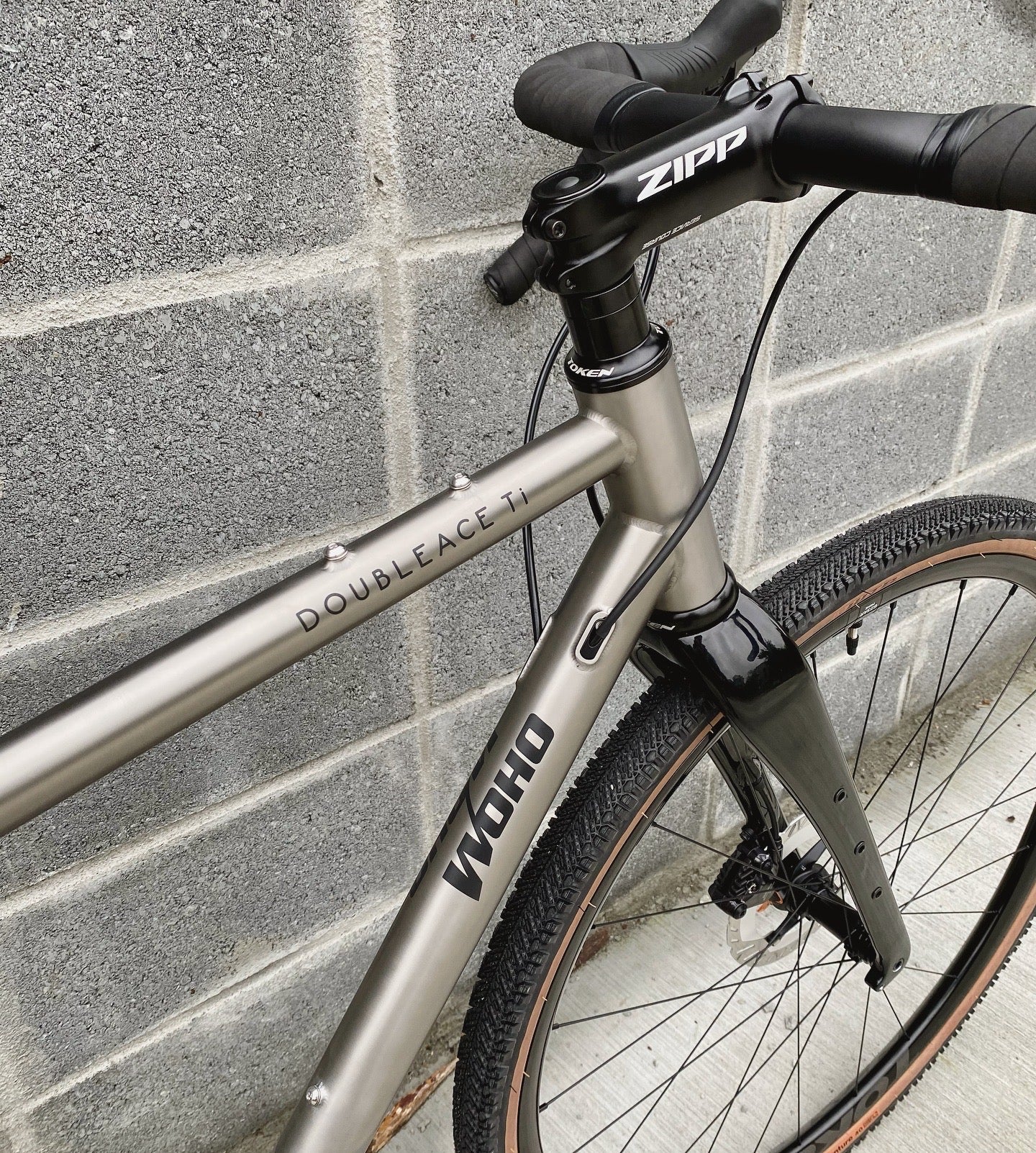

titanium flat bar gravel bike Double Ace Titanium GRAVELTHE ULTIMATE TITANIUM GRAVEL! Discover the ultimate bike for your next adventure with the Double Ace Titanium GRAVEL. Equipped with SHIMANO GRX820 12s mechanical or SRAM RIVAL GX 1*12S E TAP AXS and a lightweight titanium frame, this bike offers unbeatable performance and durability. Perfect for bikepacking, conquer any terrain with ease and style. Upgrade your ride with the Double Ace Titanium Gravel Complete Bike. This contemporary race machine is
THE ULTIMATE TITANIUM GRAVEL!
Discover the ultimate bike for your next adventure with the Double Ace Titanium GRAVEL. Equipped with SHIMANO GRX820 12s mechanical or SRAM RIVAL/GX 1*12S E-TAP AXS and a lightweight titanium frame, this bike offers unbeatable performance and durability. Perfect for bikepacking, conquer any terrain with ease and style. Upgrade your ride with the Double Ace Titanium Gravel Complete Bike.
This contemporary race machine is uniquely designed for endurance and off-road adventures. The DoubleAce is a reliable tool for multi-surface cycling, and is equipped with bikepacking bags for extended treks. With agile handling on the pavement and remarkable speed on the road, you'll appreciate the perfect balance in this touring and bikepacking frame.
Size & Geo
COMPLETE BIKE SPEC
Tubeset: Custom 3Al-2.5V oversized Titanium alloy tubing
Headset: Token Headset(Included) ZS44 / 28.6 l EC44 / 40
Fork: WOHO Adventure carbon fork (tapered steerer tube 1-1/8” to 1.5”) (Included)
Finish: Standard RAW Finish
HandleBar: WOHO Wild Gravel AL6066 FLARED 30˚
Stem: Zipp service course SL 6°
Brake Mount: 160mm Flat mount disc brake
Brake Routing: Internal (External available upon request)
Axle Spacing: F12x100TA - R12x142TA
Bottom Bracket: T47 68mm
Seatpost: WOHO Titanium Seatpost
Seatpost Diameter: 27.2mm
Seat Post Clamp: 31.8mm (Included)
Front Derailleur Mount: Clamp on
Water Bottle Mount: Four - Down tube*2, Seat tube and top tube
Rear rack or Fender mounts: Optional
Bottom Bracket: Token T47
Wheel-set: Token PRIME G23AR: 29" Alloy
Tires: WTB Venture Gravel Tire 700*40c
Tire Clearance: 700c x 40 or 650b x 47
Chainline: Gravel Chainline 1x max 44t (46t with SRAM wide-spec)
Derailleur Hanger: Universal Derailleur Hanger (UDH)
--------------------------------------------------
with SHIMANO GRX820 1*12 mechanical
Shifter & Brakes : RX820+BR-RX820 R & L
Crank Set: GRX820 FC-RX820-1 170 mm, 40T
Cassette: GRX820 CS-M8100-12 10-51T
Rear Derailleur: GRX820 RD-RX822-SGS (support 51T)
Rotors: RT-CL800 160mm F & R
GRX820 1*12 Complete Bike Price $3,990
--------------------------------------------------
with SHIMANO GRX820 2*12 mechanical
Shifter & Brakes : GRX RX-820 R&L
Crank Set: GRX820 FC-RX820-2 170 mm, 48/31T
Cassette: GRX820 CS-HG710-12 11-36T
Front Derailleur: GRX FD-RX820
Rear Derailleur: GRX820 RD-RX820 (support 36T)
Rotors: RT-CL800 160mm F&R
GRX820 2*12 Complete Bike Price $3,999
--------------------------------------------------
with SRAM RIVAL/GX 1*12S E-TAP AXS
Shifter & Brakes : RIVAL E-TAP AXS
Crank Set: RIVAL WIDE AXS 1X DUB 170 40T DM 12
Cassette: GX Eagle XS-1275 T-Type 10-52T
Rear Derailleur: GX Eagle Transmission (support 52T)
Rotors: Sram Paceline Centerlock 160mm F&R
SRAM RIVAL/GX 1*12S E-TAP AXS Complete Bike Price $4,249
--------------------------------------------------
Sizing : 46 | 48 | 51 | 54 | 57 | 60
Lead Time - Made to Order: 4-6 weeks. Current lead time about 30 days.
FREE SHIPPING to
Austria, Belgium, Bulgaria, Canada, China, Croatia, Denmark, Estonia, Finland, France, Germany, Greece, Hong Kong SAR, Hungary, Ireland, Italy, Japan, Latvia, Lithuania, Luxembourg, Macau SAR Administrative Region, Malaysia, Mexico, Netherlands, Philippines, Poland, Portugal, Romania, Singapore, Slovakia, Slovenia, South Korea, Spain, Sweden, Taiwan, Thailand, United Kingdom, United States,
More order detail please contact with [email protected]
Q&A
Q: Can I customize the frame geometry and paint color?
A: Yes! Feel free to provide your desired frame specifications and design ideas, and we will offer a custom quote accordingly.
Q: Can I choose the components I want for the complete bike?
A: Absolutely! Please provide the specifications and settings for the components you prefer, and we will prepare a custom parts list and quote based on your needs.
Q: What is the weight of the complete bike?
A: Depending on the size, the complete bike weighs around 9 to 10 kg.
Q: Can this frame be paired with other drivetrain systems?
A: Of course! We also offer frame sets and custom build services. Feel free to let us know your preferences, and we can help you achieve any setup or specifications you dream of!
