pedal bike motor CYC X1 Pro Gen 4 Mid Drive eBike Conversion Kit — Cap Rouge
SKU: 97319426483
pedal bike motor

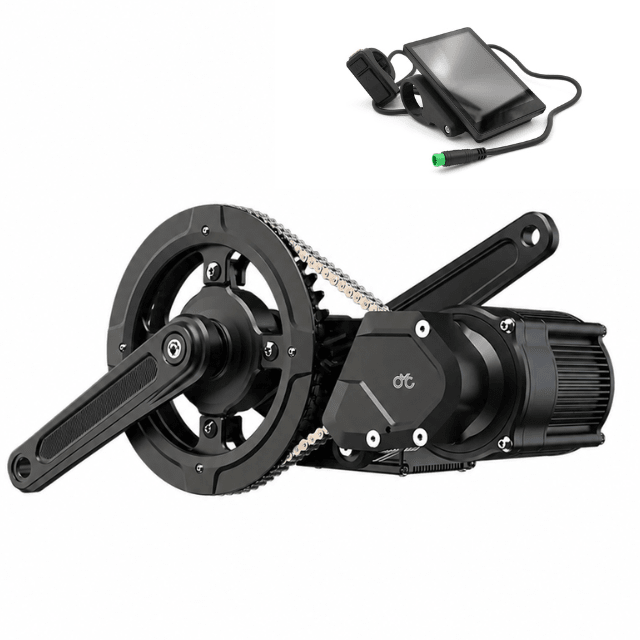

pedal bike motor CYC X1 Pro Gen 4 Mid Drive eBike Conversion Kit — Cap Rouge

Sale price$26.06 Regular price$28.96
Save 10%

Pay in installments of $7.24 with ShopPay, AfterPay and Klarna

Shipping Estimate
USA
  • USA
  • CAN

Ships within 48 hours · Estimated delivery Jun 28 - Jul 3

Promo Codes Available:

For Your Every Summer RSVP, with Code: SUMMER15

Description

pedal bike motor CYC X1 Pro Gen 4 Mid Drive eBike Conversion Kit — Cap Rouge2026 CYC X1 Pro Gen 4 Mid Drive Conversion Kit Australian Stocked 2 year motor warranty when used with any Cap Rouge or CYC branded battery. Make Your Selection of eBike Battery and eBike Smart Charger From The Drop Down Menus Below Need Help? Call us 07 5234 8088 https: www. cycmotor. com _files ugd b1453b_cffdbb03594f4cc2b09164eb1c200ec3. pdf RATED POWER: 6000W PEAK TORQUE: 250N. m. 250N. m. COMPATIBLE: 36V to 72V CHAINRING OPTIONS: 32T & 38T (30



2026 CYC X1 Pro Gen 4 Mid Drive Conversion Kit

Australian Stocked

2-year motor warranty when used with any Cap Rouge or CYC branded battery.

Make Your Selection of eBike Battery and eBike Smart Charger From The Drop Down Menus Below - Need Help? Call us 07 5234 8088

https://www.cycmotor.com/_files/ugd/b1453b_cffdbb03594f4cc2b09164eb1c200ec3.pdf



  • RATED POWER: 6000W
  • PEAK TORQUE: 250N.m./250N.m.
  • COMPATIBLE: 36V to 72V
  • CHAINRING OPTIONS: 32T & 38T (30-52T with BCD104)
  • BOTTOM BRACKET OPTIONS: 68MM-120MM

Check if the motor will fit your bike frame here

High Ground Clearance:
X1 PRO is designed to be used in extreme terrain. Thus a high ground clearance is needed. With traditional BB mounted motor like BBS series, the ground clearance is sacrificed and the motor is usually at the lowest point which is closest to the ground.
With X1 PRO unique design, it is able to install high up from the ground, especially in the modern bike frame with a curved downtube. You can also choose to install the X1 PRO within the triangular frame (need to mount the controller separately with this option), making the X1 PRO the best machine for E-MTB conversion.

Fits All Common Bottom Brackets:
The Gen 4 X1 PRO fits all standard and fat bike bottom brackets from 68mm to 120mm. It has a special BB92 Version which has a spot on chainline. BB92 Pressfit frame is common in modern mountain bike frame. It is typically very difficult to convert BB92 bike into electric due to the offset chainline. The BB92 is designed to be direct fit and with a perfect chainline of 51mm.
CYC Ride Control:
Pair the CYC Ride Control mobile app with the X-Controller Series and it gives you the ultimate freedom to ride your way. Via Bluetooth connectivity, we have ensured that your ebike experience is now more integrated than ever.

Torque & Cadence Sensors:
X1 PRO comes with a Torque sensor that is used in pedal assist mode. The torque sensor measures how hard and cadence measures how fast you pedal. These are collected and processed together by the controller to provide natural feeling of pedal assist and calculates how much power the motor should output correspondingly. A big bonus is that it also measures and records your own power via the mobile app so you can monitor your exercise rate. You can also customize the proportion of the motor power output in case you want to change the ratio of assist. EMTB mode when using comparable power levels.



48 Volt Batteries

52 Volt Batteries

60 Volt Batteries

72 Volt Batteries

2A, 3A, 4A, 5A Battery Charger Options

The X1 Pro Gen 4 is a high-powered mid-drive electric bike conversion kit made for extreme power, off-road, & utility use. Rated at 6000W & 250N.m.

Pedal Assist And/Or Throttle Assist - Or Use Both Simultaneously



Specifications:



The package includes everything you need to convert your bike except the

  1. Motor-reduction assembly
  2. 219H chainring-reduction assembly
  3. Bicycle chainring with chainring cover
  4. 219H golden KMC chain
  5. ISIS splined bottom bracket & spindle
  6. 165mm/ 175mm crank arm set
  7. Gen 4 torque sensing freewheel module
  8. CYC X12 controller (6000W)
  9. Built-in bashguard
  10. Waterproof wire harness
  11. Motor hanger
  12. 3, 5, & 7mm spacers for BSA threaded 68/73/83mm version / 2x 2mm spacers for BB92 version
  13. SW102 or DS103 Display
  14. Thumb throttle/ Half-twist throttle/ Full twist throttle
  15. Magnetic speed sensor
  16. Magnetic brake sensors (optional)
  17. User manual (ecopy) - Click here for user manual



CLICK BELOW FOR EACH 48 VOLT BATTERY OPTION MODEL

Maximum Battery Output Settings Must Be Changed In CYC Ride App - Please see CYC user manual for more info

*Failure to set power settings correctly through the CYC Ride App may cause damage to your battery and/or motor. Warranties will not be honored in this case.



48V 15Ah / 720Wh Downtube Samsung eBike Battery CPPOLF48-15

48V 15Ah / 720Wh Rear Rack Samsung eBike Battery And Rear Rack CPSR48-15-WR

48V 20Ah / 960Wh Rectangle Samsung eBike Battery CPSQ48-20

48V 20Ah / 960Wh Downtube Samsung eBike Battery CPPOLF48-20



CLICK BELOW FOR EACH 52 VOLT BATTERY OPTION MODEL

52V 8Ah / 416Wh Mini Cube Samsung 40T eBike Battery CPCUBE52-8

52V 10Ah / 520Wh Downtube Samsung eBike Battery CPWEDGE52-10

52V 14Ah / 728Wh Downtube Panasonic eBike Battery CPPOLF52-14

52V 15Ah / 780Wh Samsung 50S eBike Battery 80A BMS CPHV52-15

52V 17.5Ah / 910WH Downtube Samsung eBike Battery CPPOLF52-17.5

52V 20Ah / 1040Wh Downtube Samsung eBike Battery CPPOLF52-20

52V 25.6AH 1331WH Triangle CHAM eBike Battery CPGTR52-25.6



CLICK BELOW FOR EACH 60 VOLT BATTERY OPTION MODEL

60V 20Ah / 1200Wh Downtube Samsung eBike Battery CPHV60-20

60V 20Ah / 1200Wh CYC A65 Downtube Samsung eBike Battery CYC-A65


CLICK BELOW FOR EACH 72 VOLT BATTERY OPTION MODEL

72V 8.4Ah / 605Wh Molicel P42A eBike Battery 80A BMS CPHV72-8.4

72V 12Ah / 864Wh Samsung 40T eBike Battery 70A BMS CPHV72-12

72V 15AH 1080WH Triangle eBike Battery CPGTR72-15
