Description
ncm e bike display NCM M7The NCM M7 is a rugged electric mountain bike engineered for capable trail performance and reliable allday rides. It combines a powerful rear hub motor, a highcapacity integrated battery, and durable components in a lightweight 6061 aluminum frame designed to withstand rough terrain. Specs Motor: DasKit Rear Hub Motor, 500W, 70 Nm Battery: Integrated DasKit 912Wh, 48V19A with TAG Technology Range: 60120 km (4090 miles) Controller: DasKit T7+, 48V 22A

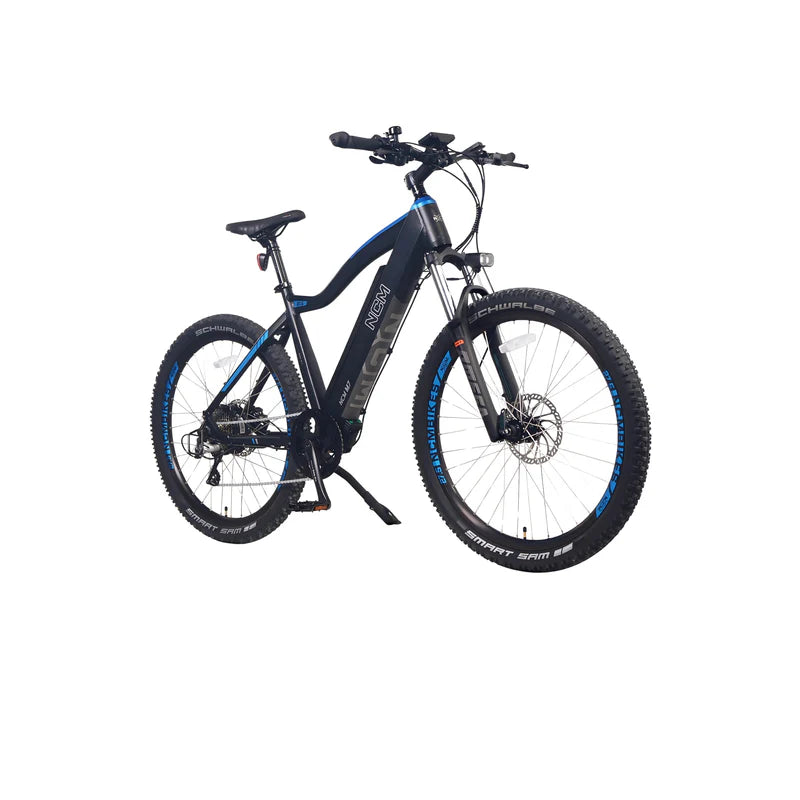

The NCM M7 is a rugged electric mountain bike engineered for capable trail performance and reliable all‑day rides. It combines a powerful rear hub motor, a high‑capacity integrated battery, and durable components in a lightweight 6061 aluminum frame designed to withstand rough terrain.
Specs
- Motor: Das‑Kit Rear Hub Motor, 500W, 70 Nm
- Battery: Integrated Das‑Kit 912Wh, 48V19A with TAG Technology
- Range: 60–120 km (40–90 miles)
- Controller: Das‑Kit T7+, 48V 22A
- Display: Das‑Kit C7 Center LCD
- Frame: 6061 double‑butted aluminum alloy
- Fork: RST Omega‑TNL‑27.5 with hydraulic lock system
- Brakes: Das‑Kit hydraulic disc brakes DK‑100
- Gearing: Shimano Acera RD‑M360 8‑speed (cassette 11–32T)
- Tires: Schwalbe Smart Sam, 27.5 x 2.35
- Wheel size: 27.5"
- Crank: Das‑Kit 46T
- Chain: KMC Z8.3RB Silver
- Saddle: Selle Royal
- Seatpost: Promax aluminum MA‑471 31.6mm
- Grips: Ergonomic Comfort
- Kickstand: Center‑mounted adjustable length
- Pedals: 9/16” alloy platform
- Charger: Das Kit 48V3A
- Weight: 59 lbs (26.8 kg)
- Max rider load: 275 lbs (125 kg)
- Front light: DH007Plus 48V 70Lux
- Certification: TÜV UL 2849
- Speed: Up to 32 km/h (20 mph)
- Battery location: Integrated with location tag for safety
Features
- Torque‑sensor pedal assist with 6 levels (0–6) and a thumb throttle for flexible power
- 70 Nm of torque from the Das‑Kit rear hub motor for climbs and rough terrain
- 912Wh integrated battery with TAG technology for extended range
- iPhone app battery tracking support for real‑time monitoring
- Das‑Kit C7 Advanced LCD display with real‑time ride data
- Hydraulic disc brakes provide precise stopping power in all conditions
- Hydraulic lockout fork to improve control on rough trails
- Integrated front lighting for visibility in low‑light riding
- Battery location tag enhances security and safety
- Rigid, lightweight frame designed for durability on rugged terrain
- 27.5" wheels with 27.5 x 2.35 tires for stable grip and stability
- 8‑speed Shimano Acera drivetrain (11–32T) with a 46T crank
- Center‑mounted kickstand and ergonomic grips for comfortable longer rides
- Front light, integrated for a clean, uncluttered cockpit
- TÜV UL 2849 certified system
Compatibility
- Drivetrain: Shimano Acera 8‑speed (11–32T) compatible with 46T crank
- Brakes: Das‑Kit hydraulic disc brakes DK‑100 compatible with frame and wheels
- Battery: Integrated 912Wh 48V system with TAG technology compatible with Das‑Kit controller
- Controller: Das‑Kit T7+ 48V 22A compatible with C7 display
- Display: Das‑Kit C7 Center LCD compatible with control system
- Front light: DH007Plus 70Lux integrated for visibility
- Wheels/Tires: 27.5" wheels with 27.5 x 2.35 tires
- Charger: 48V3A fast charger compatible with the battery system
- Frame: 6061 aluminum alloy compatible with the included components and geometry
- Weight rating: Supports riders up to 275 lbs (125 kg)
Physical
- Frame material: 6061 aluminum alloy, double‑butted for strength and lightness
- Sizes: M (19" / 5'6"–6'1"), L (20.5" / 5'9"–6'4")
- Weight: 59 lbs (26.8 kg)
- Seatpost diameter: 31.6 mm
- Handlebar: Adjustable for a comfortable riding position
- Front suspension: RST Omega‑TNL‑27.5 with hydraulic lock
- Fork travel: (specifically tuned for trail riding)
- Front light: Integrated DH007Plus 70Lux
- Battery location: Integrated within the frame with security tag
- Torque: 70 Nm
